Chemical safety signs help teams spot hazards quickly and act with confidence. Clear signage reduces errors and shortens response time.
Under the Hazard Communication Standard, labels and symbols present hazards in a consistent way so workers and contractors can understand them at a glance.
A label's design consists of a signal word, a pictogram, and specific text detailing both the hazards involved and the necessary precautions to take.
The same information appears in Safety Data Sheets (SDS). Standardized chemical safety signs and symbols keep messaging aligned across labels, postings, and procedures.
Standards that are Applicable and How They are Integrated
| Standard / Authority | Scope | Where it applies | What it standardizes | Notes on integration |
|---|---|---|---|---|
| OSHA Hazard Communication (HCS) | Classification, labels, and Safety Data Sheets aligned with GHS | On containers, labels, and in training | Label elements (signal word, pictograms, hazard/precautionary statements); SDS format | Forms the foundation for container information and training references |
| ANSI Z535 | Facility safety sign format and color conventions | Fixed signage in rooms, corridors, equipment areas, and exits | Layouts, wording hierarchy, and colors tied to Danger, Warning, Caution, and informational signs | Complements HCS by standardizing how area signs appear and read across the site |
| NFPA 704 (Fire Diamond) | Rapid hazard severity communication for responders | Exterior doors, rooms, and tanks | Diamond with Health (Blue), Flammability (Red), Instability (Yellow), Special (White), rated 0–4 | Works alongside HCS labels; provides a quick severity snapshot before entry |

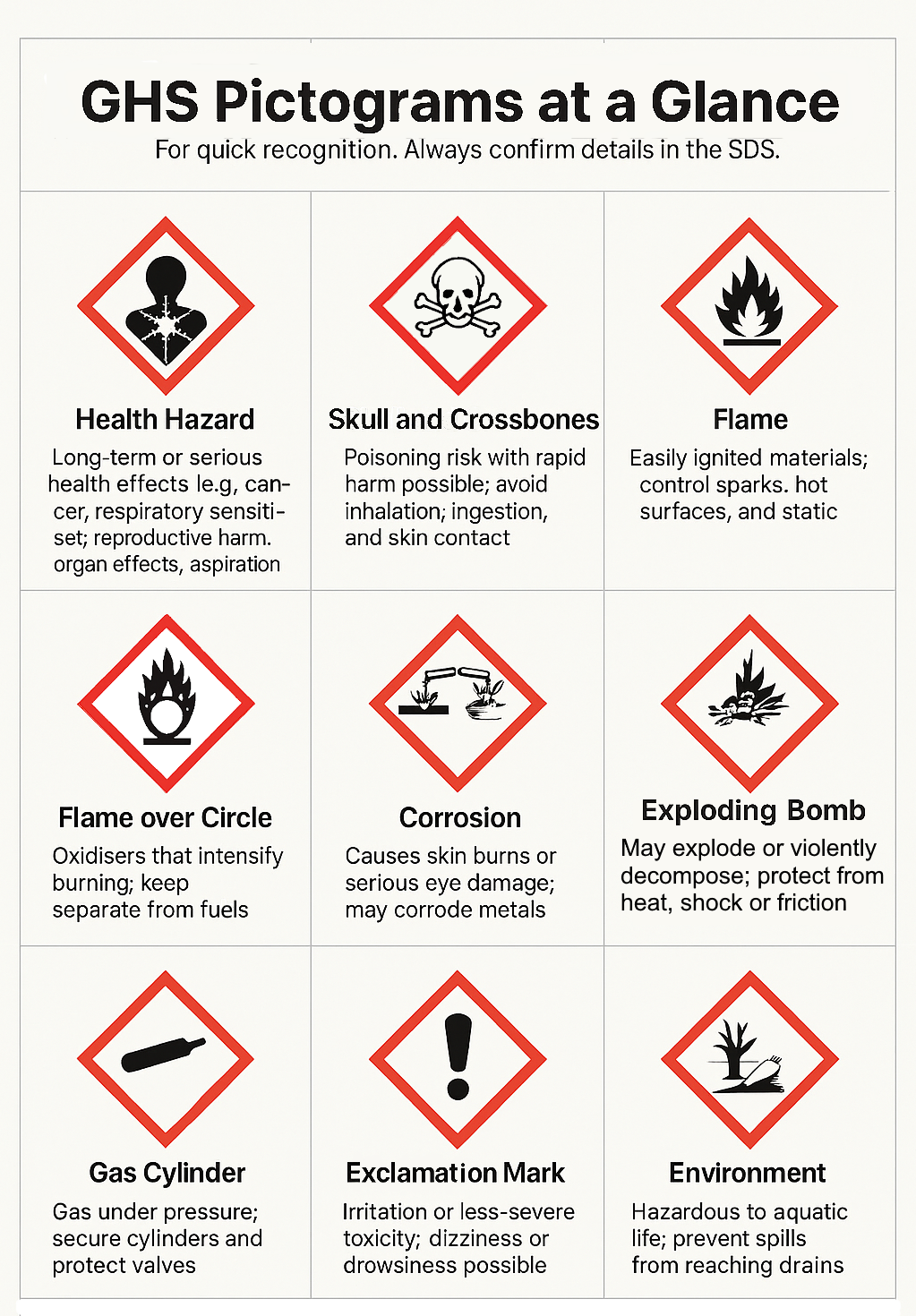

GHS Pictograms and Meanings
This section will show you what GHS pictograms look like and what they mean.
There are 9 in total, each assigned to a specific type of hazard.
How to Interpret the NFPA 704 Diamond
The NFPA diamond uses Blue for Health, Red for Flammability, Yellow for Instability, and a White field for special hazards. Numbers run from 0 (minimal) to 4 (severe). For example, Acetone 1|3|0 means low health hazard, high flammability, and minimal instability.
Signal Words and What They Mean
The signal word should match the product’s hazard class, and standardized colors and layouts should be followed so messages remain clear.
- “Danger” indicates immediate, serious hazards.
- “Warning” indicates significant but less immediate hazards.
- “Caution” marks potential hazards or unsafe practices.
Where Chemical Safety Signs and Labels Must Be Placed
Primary containers come fully labeled from the supplier, and these labels should be kept intact. When a chemical is poured into another container and will be used later or left unattended, a compliant workplace label that mirrors the SDS should be applied.
- In active work areas, warning signs should be placed at critical decision points, such as entrances, exits, and equipment controls, and must be taken down as soon as the risk is eliminated.
- In laboratories, lab safety and chemical hazard signs should be placed near eyewash stations, storage cabinets, and entry doors so key information is visible before work begins.
Training and Competency Development
The best way to develop your team's safety skills is with brief and frequent training updates.
A proven method is:
- Recognize the Symbol: Know what the safety icon means at a glance.
- State the Risk: Clearly describe the potential hazard.
- Apply the Control: Confidently use the correct safety measure, such as wearing protective equipment, ensuring good airflow, or using a shut-off valve.
You can easily find ready-to-use visuals and handouts from official safety organizations to support your training.
Selecting Appropriate Signage for Your Facility
- In handling areas, GHS label elements that match the SDS are expected.
- For storage rooms and exterior doors, NFPA 704 diamonds are commonly added so responders can assess risk before entry.
- For general warnings and exit routes, ANSI Z535 formats and colors are preferred to maintain consistency across the site.
Vendor guides can assist in translating SDS details into the appropriate mix of labels and area signs.
Common Compliance Mistakes
Teams often run into some common issues like:
- Forgetting to label secondary containers after a transfer.
- Choosing the wrong signal word.
- Using non-standard colors or layouts that make labels hard to read.
OSHA’s Hazard Communication Standard (HCS) defines what the label must say, while ANSI Z535 explains how the sign or label should look and read.
Final Thoughts
Chemical safety signs function as a shared language. GHS elements on containers, ANSI formats on area signs, and NFPA 704 on rooms and storage exteriors together create a consistent system.
Keeping labels current, delivering brief refreshers, and maintaining easy access to the SDS help people make better decisions and work safely every day.
FAQs
1) How do GHS pictograms differ from the NFPA 704 diamond?
GHS pictograms show the type of hazard on container labels. NFPA 704 shows how severe the hazard is for responders on rooms, tanks, and doors. Both may be present when needed.
2) Do secondary containers need labels?
Yes. If a chemical is transferred, a workplace label should be applied before use or if the container will be left unattended. Wording should match the SDS.
3) Which signal word should be selected?
To maintain consistency between what is taught in training and what appears on labels, always consult the SDS. It defines “Danger” as the signal word for a higher-level hazard compared to “Warning.”
4) Where should general hazard signs appear in a plant?
Decision points such as entrances, process controls, and exit routes are typical locations. Signs should remain visible while the hazard exists.
5) Are official pictogram files available for printing?
Yes. Official vector artwork is recommended so symbols remain accurate and readable at any size.
